High Precision Professional Printing Machinery ,Tattoo Stencil Transfer Machine black

  Specifications:

Type: Transfer Machine
Power: AC 110V-220V; 50Hz/0.46A
Power Consumption:Standby 5W
Environment condition: Working Temperature( 5°C-35°C)/Relative Humidity(20%-80%)
Weight: 2Kg
Package Size: 320 mm(W) x 270(D) x 120mm(H)

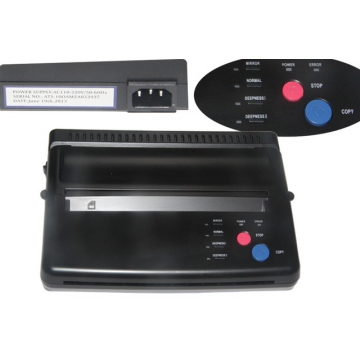

Operation Panel Introduction:
Mirror: The key shifts between tow kinds of light situation. Mirror Copy and Normal Copy. The default situation is Mirror Copy. When the mirror copy function starts, the mirror light works.
Normal : The key shifts between tow kinds of light situation. When the normal copy function starts, the normal light works.
Deepness 1: The key is to set the copied documents by Deepness 1. When the Deepness 1 works, the Deepness 2 goes off.
Deepness 2: The key is to set the copied documents by Deepness 2. When the Deepness 2 works, the Deepness 1 goes off.
Copy: The key is to start the copy function.
Stop: The key is to stop the copy function.
Power: The light indicates that the machine is prepared for working.
Error: The light is to show something wrong happened on the machine. When the TPH is Overheating, the light goes on.
Start Operation:
Insert the power plug into an available power outlet. When the machine is in the standby situation, the sound "DOO" will be heard. All the parameters items can be set up when the machine is under the standby situation.
Transfer Paper Operation
Open the transfer paper cover.
Throw away the stencil paper(between white paper and blue paper).Keep the white paper top. Independently, pull the yellow paper through the input mouth and stop as the white and blue paper exceeds the output mouth.
Close the transfer paper cover.
Keep document needed to copy facing down as putting it into the feeder. When document is seized by the machine, please press the button"COPY".
COPY:
Please set up the needed parameters before transfer.
Put well the transfer paper.
The documents should be facing down and put into the feeder. When the document is seized, the press the button"COPY" please.
Note:
If you want to stop the copying mission, Please press the button"STOP".
If you warning signal sounds and ERROR light works, the machine will stop copying.
