Security Rotary

Item specifics

ZHONGX

1 (1)

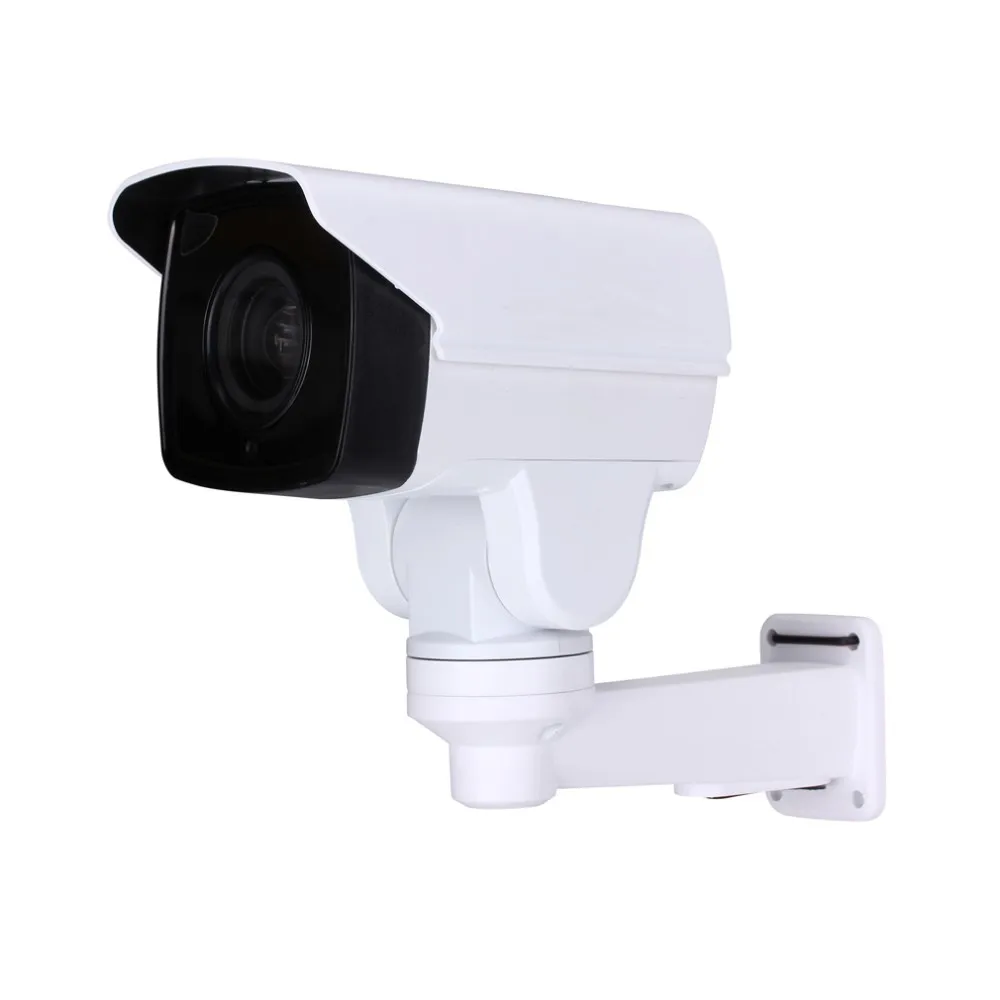

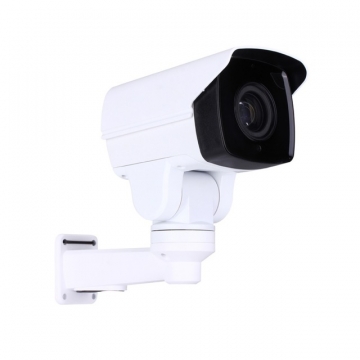

MINI PTZ DIGITAL

Technical parameters:

Model	YC-104AR/YC-110AR/YC-110AR-AU
POE	Yes
Sensor	1/2.8" Sony Exmor CMOS Sensor
Effective pixels	1080P(1920X1080)
Zoom	4/10X optical zoom
Focus lenght	5.1-51mm/2.8-12MM
Day/night mode	Automatic /multicolour /monochrome
Focus mode	Automatic/ manual
Noise-signal ratio	2D/3D-DNR
Back light compensation	Off/on
White Balance	Automatic/ Manual
Electronic shutter	1/25s ~ 1/300000s
Gain control	Automatic/ Manual
Min illumination	0lux (IR ON)
Wide dynamic range	Support

Network parameter

Max image	1920*1080
Double stream	1080p+D1
Heartbeat function	Support
Security mechanism	Password protection, multi user access is controlled
Communications protocol	TCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPoE,SMTP,UPnP,SNMP,802.1x,IPv6 (SIP,SRTP,optical), ONVIF
Double stream	Support
Interface	One network interface, one power input

Infrared lamp

Infrared lamp
IR View Distance	4 High power array LEDs with IR
IR lamp control	50m/80 meters
IR lamp consumption	Automatic /manual / camera

Mini camera

Pan speed	Pan speed:0.5°~15°/s,speed is settable;pan preset speed:20°/s
Tilt speed	Tilt speed:0.5°~10°/s ,speed is settable;Tilt preset speed:20°/s
Rotation	Pan: 300° continuous rotation; Tilt: -5°~60° auto flip
Preset	255 presets ( Chinese title)
Auto Scan	8 groups, settable boundaries and scan speed
Auto Cruise	8 groups, each with 32 presets with settable time interval
Pattern Tour	4 groups, each with 500 instructions
Video analysis	Support
Auto tracking	Not Support
OSD menu	OSD menu with Chinese and English
Heat dispersion structure	Out Cool Air Circulation to Sink the Heat Technology
Supply voltage	DC12V±10% 1.2A
Levels of protection	IP66/ level 2 lightning protection,4000V prevent thunderbolt surges design
Working temperature	-35-+55
Working humidity	<90%,No condensation
Consumption	13W Max
Weight	0.92 Kg
Accessory	Wall-mount bracket

Main features:

1:First Patent of Out Cool Air Circulation to Sink the Heat Technology.(Patent No.ZL201220269676.7)

2:First Patent of Video Analysis Light-adjustment Technology .(Patent No.201110089768.7)

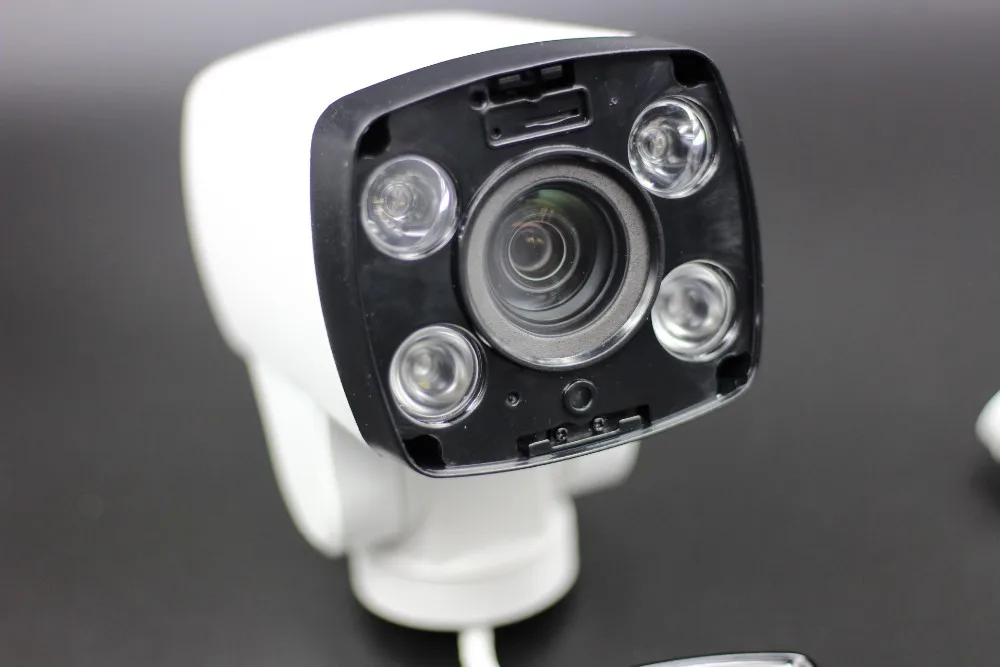

3: The Highly power array LEDs with IR range up to 80meters

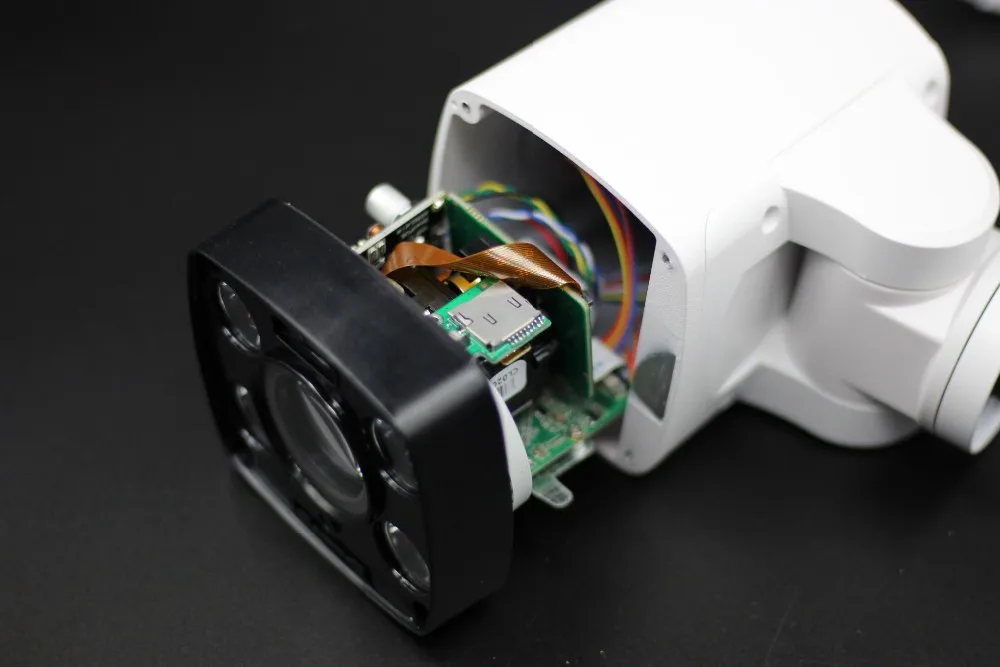

4: Built-in digital HD module,the image can up to 1080p.

5 Built-in camera :4/10X optical zoom.

6: New Ambarella S2LM compression program,SONY HD Senor IMX322 CMOS.

7 OSD menu in Chinese and English system.

8:The working consumption of Infrared lamp can be set separately by menu,related with the optical zoom.

9:Illumination value of installation environment can be defected.

10:Intelligent temperature control design, can display real-time inside temperature of the dome camera.

11: Infrared light control software, suitable for various occasions

12: Automatic defrost and defog function( manual operation)

13: IP66/ level 2 lightning protection,4000V prevent thunderbolt surges design.

1 (2)

IMG_20160512_151103 IMG_20160512_151209

IP1 (1) IP1 (2) IP1 (3) IP1 (4) IP1 (19) IP1 (20)

IP1 (21)

1111 20160921_113203_278

Packaging Details

Unit Type: piece
Package Weight: 2.0kg (4.41lb.)
Package Size: 15cm x 15cm x 15cm (5.91in x 5.91in x 5.91in)
