Item specifics

Product Description

2017 New ELP 1080P Sony IMX322 H.264 Low illumination 0.01Lux Industrial Machine Vision Mini usb webcam camera

Package includes:

1) 1PC 2mp H.264 usb camera with 5-50mm Varifocal

2) 1PC 3m usb cable

Key Features:

1. Ultra Low light Camera, Minimum illumination 0.01lux

2、Support otg protocal

4. Max resolution :1920*1080P ,2.0 Megapixel

5. Highly advanced Sony IMX322 Sensor

6. Compression format : H264 /MJPEG / YUV2(YUYV)

7. White balance Function: Excellent indoor and outdoor effects, vivid colors

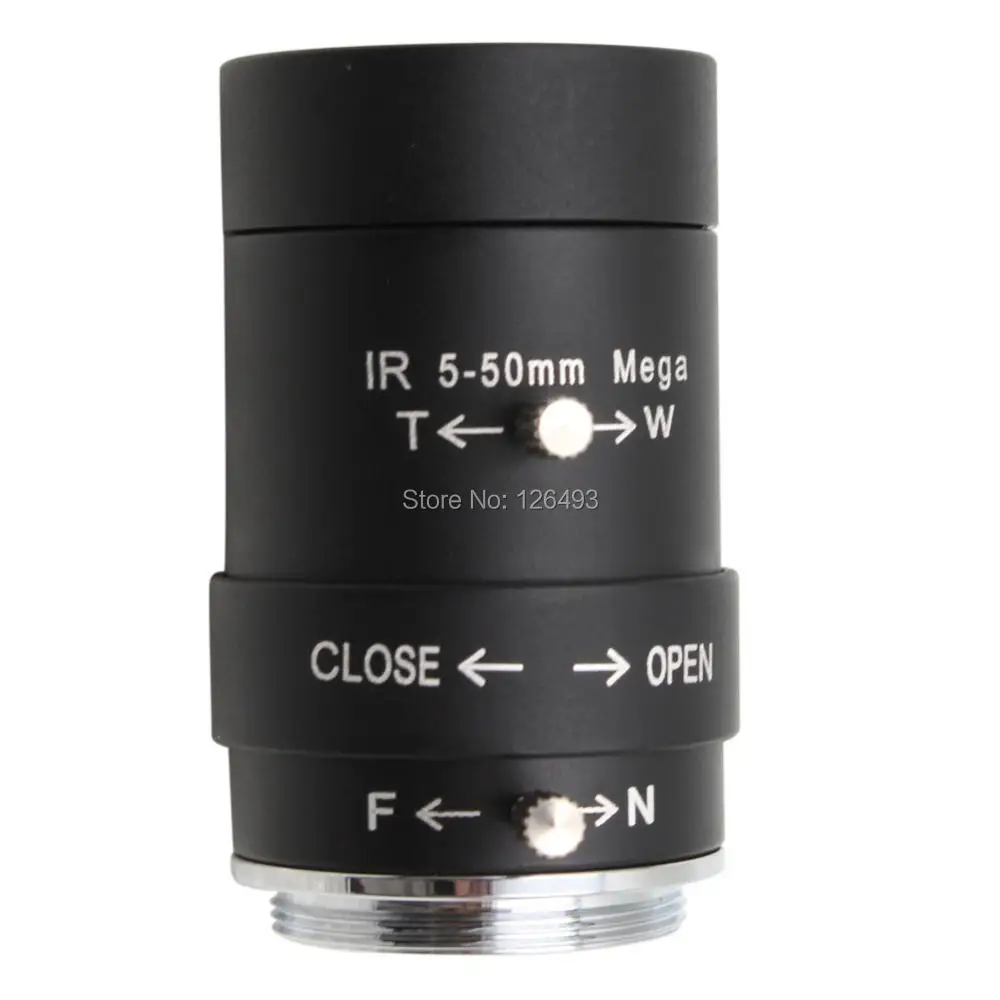

8. Equiped with 5-50mm varifocal lens

Specifications:

Model	ELP-USBFHD06H-SFV (5-50mm varifocal lens)
Sensor	Sony IMX322
Lens Size	1/2.9 inch
Pixel Size	12.8X11.6 mm
image area	2000(H)X1121(V) approx. 2.24 M pixels
Max. Resolution	1080P
Compression format	H264 /MJPEG / YUV2（YUYV）
Resolution & frame	H264: 320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps /800X600@ 30fps/1280X720@ 30fps/1920X1080@ 30fps MJPEG:320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps /800X600@ 30fps/1280X720@ 30fps/1920X1080@ 30fps YUV:320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps /800X600@ 15 fps
S/N Ratio	42dB
Dynamic Range	86dB
Sensitivity	5.0V/lux-sec@550nm
Mini illumination	0. 01 lux
Shutter Type	Electronic rolling shutter / Frame exposure
Connecting Port type	USB2.0 High Speed
Free Drive Protocol	USB Video Class（UVC）
Support OTG Protocol	USB2.0 OTG
AEC	Support
AEB	Support
AGC	Support
Adjustable parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Backlight Contrast, Exposure
Lens Parameter	Megapixel 5-50mm varifocal lens ,other lens optional

LED board power connector	Support 2P-2.0mm socket
Power supply	USB BUS POWER 4P-2.0mm socket
Power supply	DC5V
Operating Voltage	140mA~190mA
Working current	-10～70℃
Working temperature	-20～85℃
Board size /Weight	38X38mm（Compatible 32X32mm）/ about 30g
Cable	Standard 1M / optional 2M,3M,5M
Operating system request	Win7 Win8 Linux 2.6 or above Android 4.0 or above

Applications:

used for all kinds of machine as below:

machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automatic
vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law
enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system,
automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video
shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD
surveillance, endoscope, Medical auxiliary equipment, etc.

Product display:

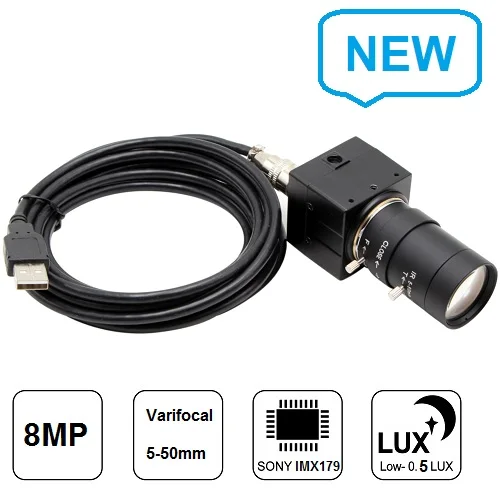

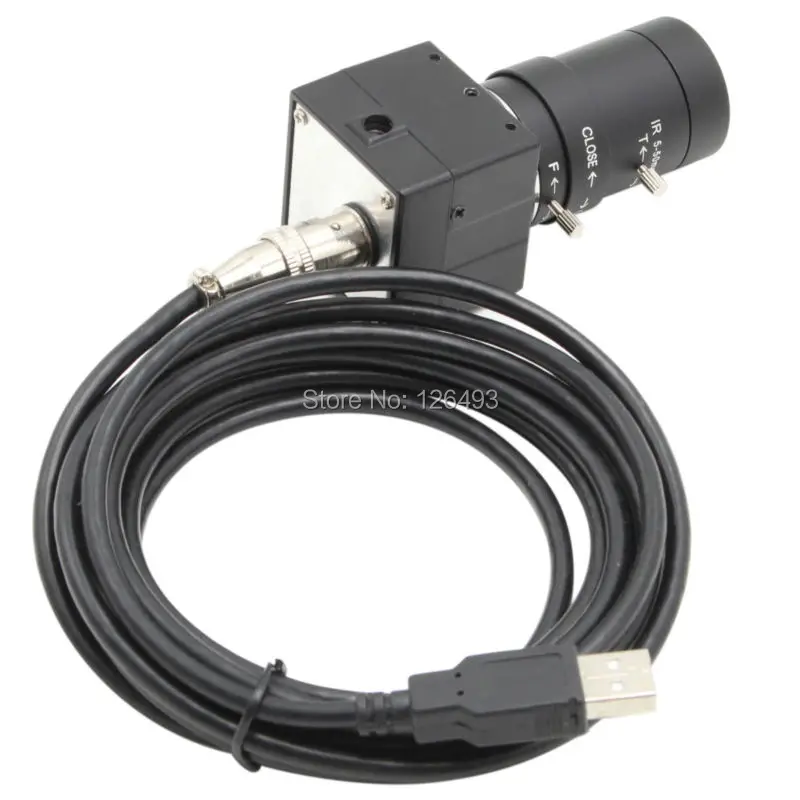

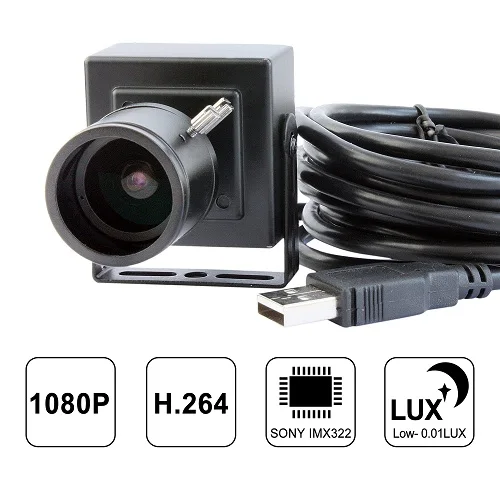

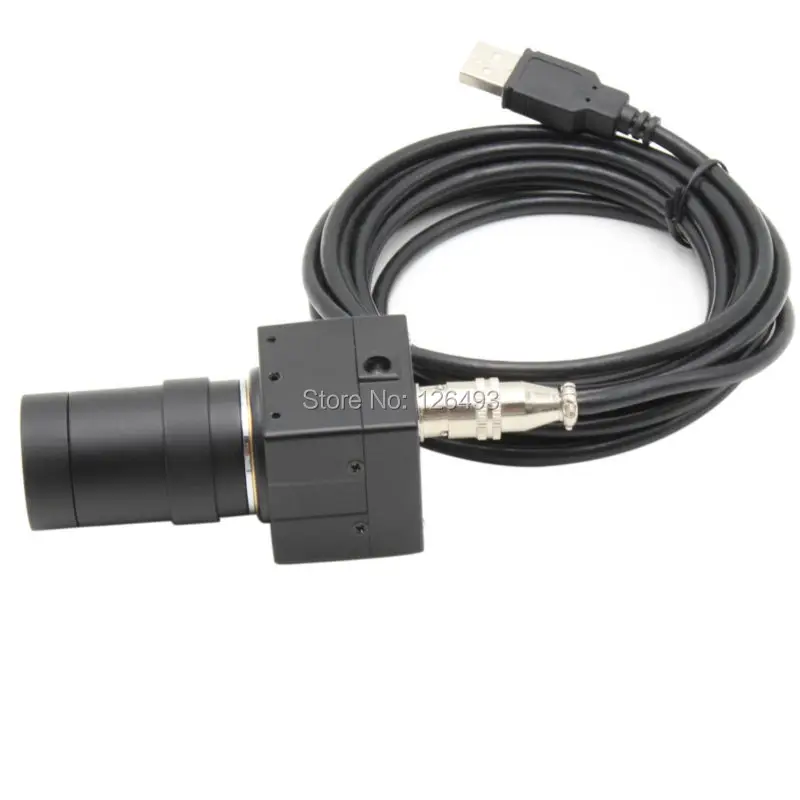

varifocal cctv camera (3) mini usb camera (1) varifocal cctv camera (5) varifocal cctv camera (7) varifocal cctv camera (2) varifocal cctv camera (1) varifocal cctv camera (8)

Specially designed Packing for usb cameras:

usb packing

USB Camera appllication:

2mp usb camera (1) 2mp usb camera (2)

Your attention, please:

Our Payment term

1.We accept different payment: Alipay ,Paypal , T/T, Western Union,Visa ,MasterCard ,Escrow
2.A big discount is available for you if you need a large amount , please contact us .

Our shipping term

1. We only ship to your confirmed address. Please make sure your shipping address

is correct before purchase.

2. All the orders will be shipped out within 1-3 business days upon payment confirmation.
3. The shipment by China Post Air Mail for less than 2kg goods ,generally it will take

25-45 working days(some countries can be much longer) ,if you need the goods
