Brand Name :CHSKY

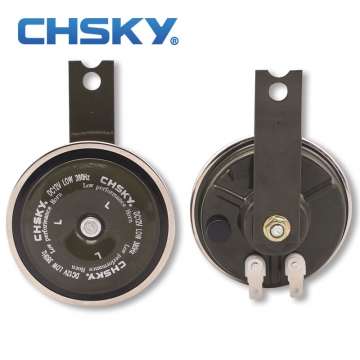

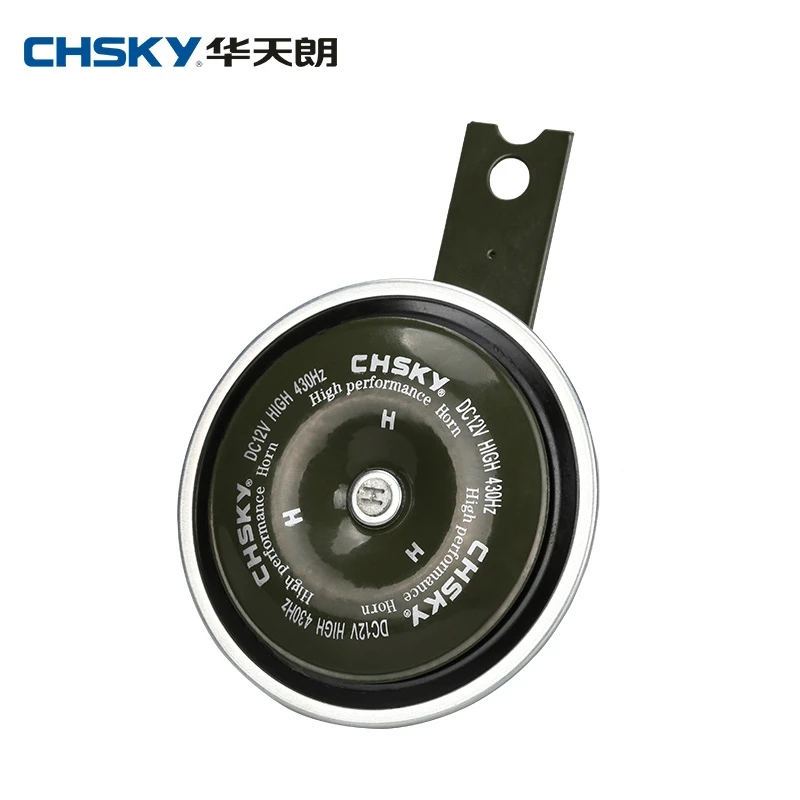

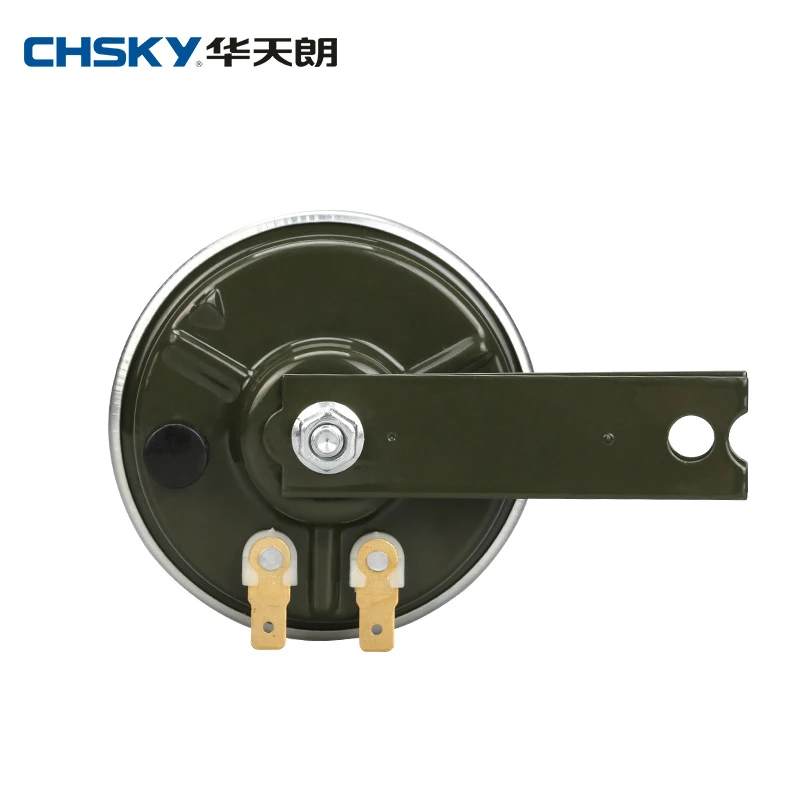

Details:Car klaxon horn DL-80

Voltage: 12V

Current: 3.5A-4.5A per horn

Frequency:H=430HZ   L=380HZ

Sound level: >=125DB

Diameter:80MM

Applicable for cars:Universal

Certificate:ISO9001:2000,CCC National Security Certificate

12 months warranty, good after service, delivery on time,For more details, please feel free to contact me!

Why we need a Harness?

*More convenient

If your car have only one horn,but you want to modify to two horns.It is necessary to use this horn relay harness

**More secure

If to use this horn harness,your car's controller power will be only 1.6W.Then your original car wire that is more secure.

***More Loud

If to use this horn harness,it just like to install a parallel circuits.It will make your "old" horn become "younger".The sound will be much louder than before.

****Warning

1.If you buy a new car,it is no need to buy this harness.Because it is not "Magic harness".It follows the science.It can only help "old" car become "younger".

2.If your car drive for a long time,we do not suggest u to purchase a new high current(loudness) horn.Because it will increase your car wire's pressure.It is unsafety.PLEASE BE CAREFUL.

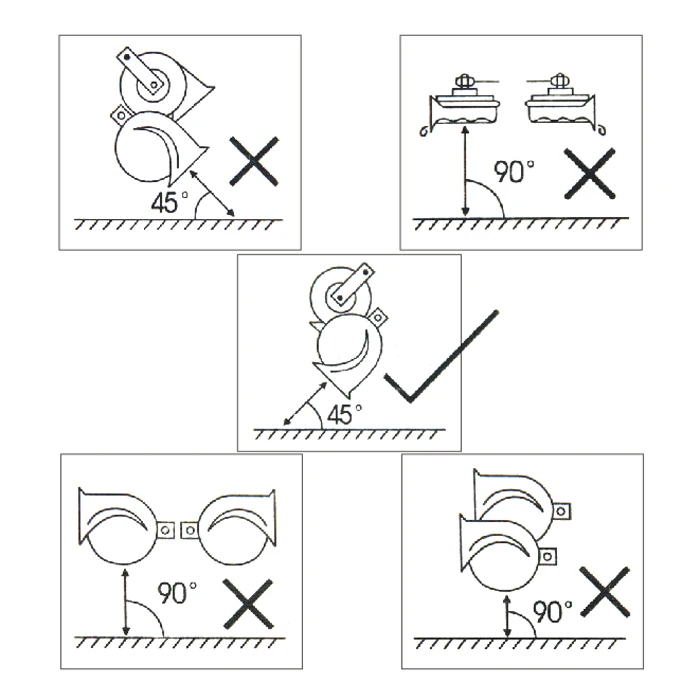

a. Snail down or 45 degree Angle installation, Prevent water  into coiled directly

b. If you are not special peason , don't change the angle degree of Steel Support,or it will change the Original air gap.

c. Mounting torque of Steel support is between 6Nm to 11Nm.

d. The horn support should be mounted to Solid surface to avoid resonance.

e. In order to avoid contact with other parts of the car,The horn should be connected with horn support and installed to wide and Ventilated place.

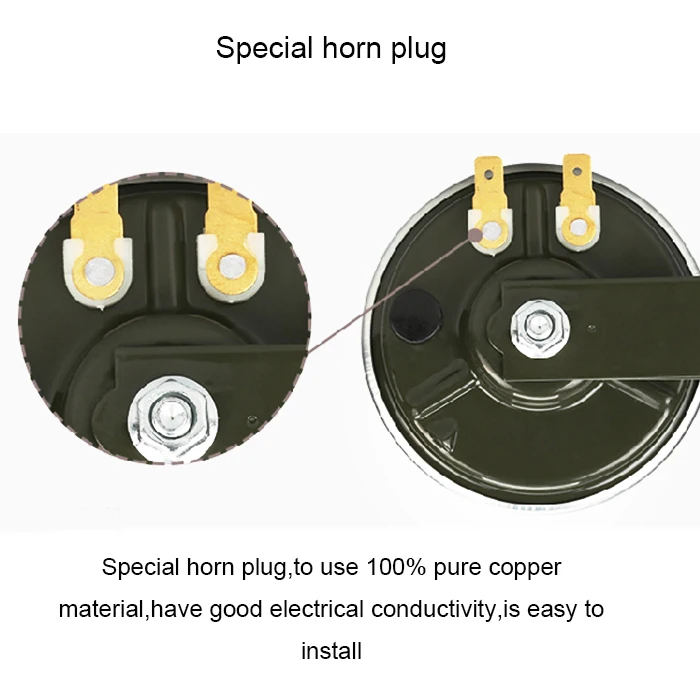

f. Nonpolarity requirements for this product, the connected place of the wire should solid enough, Double horn should installed on solid part of car body in parallel way.

g. Keep away from car motor and much Radiation place. Not be too low mounting.

h. Don't keep the horn on for 60 seconds, or it will lead to the coil burned down.

i. Using copper wire, more than 1.5mm for wire Diameter, the wire length should less than 4m.

j. Standard mounting Voltage, input working current more than 30A,12V horn voltage: 9-14.5V
